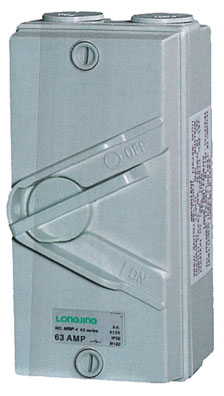

| Weather Protected lsolating Switches |
|
|
|
 ????? ???????? |
The UKF Series of Weatherprotected lsolating Switches is a robust range of switches suitable for virtually any external application.
lncluded in the range are singe, double and triple pole switches from 20 to 80 Amps. The base mounted mechanism provides for easier termination and more wiring room. Switch dimensions are 165mm x 82mm with an overall height of 85mm.
Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal stripping lengths snd secure clamping for allcables. Terminal bore size 5-6mm. A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.
Each unit supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw caps. Screw caos must be installed to ensure IP Rating.
The impact Resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a weather seal gasket.
For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulsed barriers protect the operating lever from physical abuse or accidental switching.
All units comply to IEC60947-3.
Mines, and, Energy, south, Australia, Approvais.
Standard coloure are Grey & White. |
| ????? ????????? |
